Open-Platform Hardware

Cards and Readers

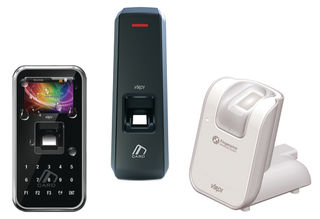

VIRDI Biometric Access Readers

Detect Fingerprint at Secure Access Points

Using human capacitance, infrared light, and advanced algorithms, VIRDI fingerprint sensors are designed to quickly and accurately detect fingerprints and discern fake biometric attempts.

Avigilon SE R10 Card Reader

A multipurpose card reader from Avigilon. The HID iCLASS SE® readers help keep security at the forefront by utilizing the latest authentication through the Secure Identity Object (SIO) data model for trusted and secure communications.

Controllers and Sub-Panels

One way to protect and future-proof your ACM investment is by using hardware from leading manufacturers such as Mercury Security and HID Global. With hardware options for small to enterprise-level systems, deploying and managing your ACM system has never been more intuitive and flexible as it is today. Installations will further benefit from a wide selection of hardware that will provide the features needed for most project requirements.

HID VertX EVO Controllers

HID Global is a trusted leader in solutions for creation, management, and use of secure identities for millions of customers worldwide. Avigilon is a Platinum HID® Partner and offers HID VertX EVO® controllers and HID VertX® interface and I/O modules as part of our Access Control Manager solution.

As part of HID Global’s Networked Access Solutions, each Network controller offers the capability to connect anywhere from 2 to up to 64 reader doors using a single IP address. Both controllers handle all online door decisions, door input monitoring, and output control connecting to Avigilon’s Access Control Manager (ACM).

HID VertX Interface & I/O Modules

HID Global is a trusted leader in solutions for creation, management, and use of secure identities for millions of customers worldwide. Avigilon is a Platinum HID® Partner and offers HID VertX EVO® controllers and HID VertX® interface and I/O modules as part of our Access Control Manager solution.

The HID Global VertX® high-performance interface and I/O modules communicate through a high-speed RS-485 network using industry-standard TCP/IP protocol over 10/100 Mbps Ethernet or the Internet to Avigilon’s Access Control Manager (ACM). Whether interfacing with process equipment such as HVAC or video switchers, or expanding the door/reader capacity to meet project requirements, the VertX line has the versatility needed for sending access information to any of the two available network controllers.

Mercury Controllers

Mercury Security focuses on supplying OEM hardware for access control. With more than 2.5 million control panels in operation, Mercury is one of the top players in the market. Avigilon is a Platinum Elite Mercury Partner and offers Mercury controllers, interface modules, and I/O modules as part of our Access Control Manager solution.

Mercury’s intelligent system controllers are a powerful solution for managing anywhere from seventeen (17) to sixty-four (64) readers with the Avigilon™ Access Control Manager (ACM)™ system. With the flexibility to meet many installation environments, Mercury controllers communicate using PoE or RS-485 and expand I/O and readers by simply adding input, output, and reader interface modules.

Mercury Interface Modules

Mercury Security focuses on supplying OEM hardware for access control. With more than 2.5 million control panels in operation, Mercury is one of the top players in the market. Avigilon is a Platinum Elite Mercury Partner and offers Mercury controllers, interface modules, and I/O modules as part of our Access Control Manager solution.

Mercury’s interface modules are low cost, high-performance devices that provide all the I/O needed for managing multiple controlled openings with auxiliary point control and monitoring. What’s more, they provide access control and security monitoring using any of the three available intelligent controllers connecting to the ACM access system.

Mercury I/O Modules

Controllers, interface modules and I/O modules

Mercury Security focuses on supplying OEM hardware for access control. With more than 2.5 million control panels in operation, Mercury is one of the top players in the market. Avigilon is a Platinum Elite Mercury Partner and offers Mercury controllers, interface modules, and I/O modules as part of our Access Control Manager solution.

Mercury Security focuses on supplying OEM hardware for access control. With more than 2.5 million control panels in operation, Mercury is one of the top players in the market. Avigilon is a Platinum Elite Mercury Partner and offers Mercury controllers, interface modules and I/O modules as part of our Access Control Manager solution.

Wired and Wireless Locksets

Get the benefits of a wired installation, without the complexity and cost of traditional wired locks. Wireless lock integration is an excellent solution for educational facilities, healthcare offices, hospitals, commercial businesses, or any application that wants to combine all of the components typically found around the door into a simplified all-in-one system.

Reduced Hardware Costs

Reduce the cost and complexity of added hardware by connecting the Mercury controller directly to the panel interface module, gateway or communications hub for a secure wireless path to the lock.

Modular Design

Flexibility to customize the lock to meet the needs of the application now, and purpose-built to allow for customizing the lock rather than replacing it in the future, with little to no operational disruption.

Increased Security

Turn any keyed door or sensitive area into a monitored access door to improve security in and around facilities.

Flexible Lock Configurations

Ability to customize the reader type, chassis type, locking functions, power options, lever styles, finishes, and more according to the needs of the application.

ASSA ABLOY Aperio

Wireless Lock Solution

The Avigilon ACM system utilizes ASSA ABLOY Aperio® Wireless Technology to reduce the cost and inconvenience of wiring in and around the access door. The Aperio solution can support a wide range of applications, including interior office room doors, server room cabinets and storage lockers, glass, stone or brick entryways, slim aluminum entry doors, and more.

Aperio wireless locks communicate over a secured 2.4 GHz band to an Aperio communications hub. Each hub allows a wireless connection of up to eight Aperio wireless locks. This solution uses three variants of Mercury hardware controllers that connect over RS-485 to the Aperio hub.

Key Features

• Integrated antenna with the option to mount an external antenna
• Visual status indicator
• Commission the Aperio solution using a PC or laptop
• Support for HID 125 kHz proximity and 13.56 MHz iClass® contactless credentials
• Aperio series locks receive power from alkaline or lithium batteries

Schlage LE Series

Wireless Locks

Managed with ACM system from Avigilon, the Schlage LE wireless mortise lock with ENGAGE technology is designed to affordably extend electronic access control deeper into the building beyond the traditional perimeter and high-security openings. LE wireless locks simplify installation by combining the lock, credential reader, door position sensor, and request-to-exit switch all in one unit.

Key Features

• Weather-resistant design for use on perimeter doors
• Built-in Bluetooth enables wireless configuration from smartphones and tablets
• Networked real-time communication with Software Alliance ACM via the ENGAGE Gateway
• Up to 2 years of battery life

Schlage NDE Series

Wireless Locks

NDE Series Wireless Locks Schlage NDE wireless locks communicate over a secured 2.4 GHz Bluetooth 4.0 connection to the ENGAGE gateway. Each gateway supports up to ten NDE or LE series wireless locks. The ENGAGE gateway provides real-time communication to the ACM software to monitor the condition of each wireless access door. Each gateway communicates over RS-485 to the Mercury controller.

Key Features

• Provides real-time communication to the ACM system
• Easy installation for existing doors
• Simple to commission using the ENGAGE mobile app
• Compatible with Allegion aptiQ™ multi-technology, smartcard and proximity credentials from Avigilon
• NDE series locks receive battery power from standard alkaline batteries

Allegion AD-400

Wireless Lock Solution

Schlage® wireless locks communicate over a secured 900 MHz band to a panel interface module that acts as the gateway between the Mercury hardware and the wireless lock. Each Panel Interface Module (PIM) allows a wireless connection of up to 16 AD-400 wireless locks. This solution uses two variants of Mercury hardware controllers that connect over RS-485 to the Schlage PIM.

Key Features

• Automatic linking to remote wireless access points with 10 channel frequencies
• Five visual indicators to quickly pinpoint and display status
• Commission the AD-400 solution using a handheld programmer
• Support for 125 kHz proximity and 13.56 MHz smart cards
• AD-400 series locks receive power from standard alkaline batteries

Allegion AD-300

Wireless Locks Solution

AD Series electronic locks from Schlage® are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now and be changed to meet future needs without removing it from the door.

Key Features

• Open architecture platform
• Panel interface options ensure seamless communication with ACM
• Field configurable fail safe/fail secure and other capabilities per code
• Compatible with major brands of master key systems
• Real-time communication between ACM system and lock
• A wide selection of credential readers and networking options

Power Supplies and Enclosures

LifeSafety Power

Power Supplies and Enclosures

The Avigilon power enclosure from LifeSafety Power includes all the power needed for up to 16-door applications. These enclosures are specifically designed to house Mercury Security and HID VertX® access boards and also includes a separate 24 volt DC circuit that provides lock power within the same enclosure, saving the cost of added hardware and installation time.
